Thông số kỹ thuật
Thông số kỹ thuật:

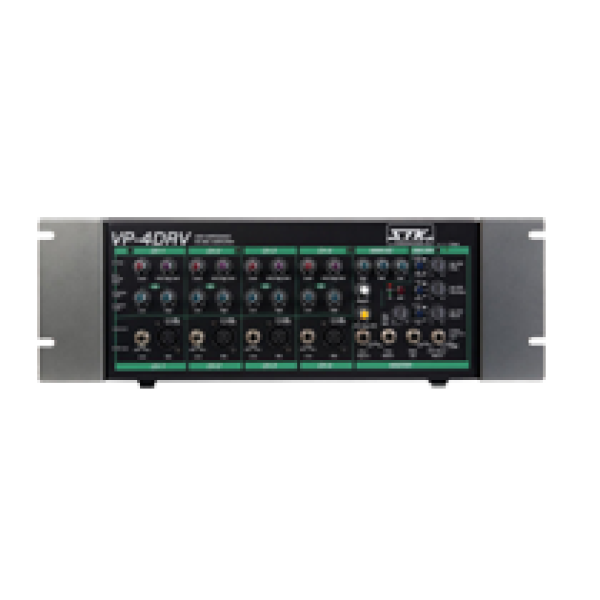

The VP-4DRV is similar purpose of the VP8-DRV,compact size very economic with full-featured best buy. 4 CH input 170W dual purpose designed for 70V/100V output and 8 ohm full range output with high-fidelity specification. The 90 W high voltage outputs effectively match the impendance of a wall mount, out door indoor loud speaker and paging horn speakers,Another 8 ohm 75 W quater inch phone jack outputs connect to STK 2 way SP112 full range speaker or other equivalent products.
- 4 CH 12 input configurations
- Barrier strip 70V/100V output terminals.
- The Mic preamps extra 10dBu input handling capacity.
- Ultra realistic sound with 20kHz response dual variable DRV digital effects
- Convection cooling with large size heat sinks
- FET control quiet power on/off muting circuit.
- Lowest in-rush trodial transformers.
| Model | VP4-DRV |
| Configuration | |
| Power(EIA) | |
| A&B Both output Drive | 170W |
| Rated Power(20-20kHz) | |
| Output A, 8 ohm load | 90W |
| Output B,High Z Load | 70V/100V(80W) |
| Distortion
(THD & SMPTE IND; 20Hz to 10kHz) | |
| Mic input to main mixes output | 0.01% |
| Mic input to power amp output | 0.05% |
| Inputs
(all 1/4” TRS are Bal./Unbal.except*) | |
| Mono mic/line | 4(XLR and 1/4" Phone) |
| Stereo line | - |
| Tape In | TS 1/4" |
| AUX Returns | TS 1/4” |
| Outputs
(all 1/4” TRS are Bal./Unbal.except*) | |
| Speaker Outputs | TS 1/4”(8 ohm)/ 4 Block Barier Strip(70V/100V) |
| Main Mix(line)Level | TS 1/4” |
| Main Mono(Subwoofer) | N/A |
| Aux Sends | TRS 1/4” |
| Tape L/R Stereo | |
| Controls Channel | |
| AUX Send Control | 1 EFX |
| Constant Pan Control | N/A |
| 10dB Input PAD | |
| Controls Master | |
| Digi EFX | Dual Variable
1 REV Control(0.5-10sec)
1 DELAY Control(50-1000 msec)
1 FEEDBACK Control(0-90%)
1 DR MIXING Control(0-100%) |
| Digi EFX Control | On/Off, LED Level Set |
| Digi EFX Buss Control | 1 + 1 Monitor |
| Aux In Control | |
| 7-Band Graphic Equalier | Yes(3 band type) |
| AUX Send Master | |
| Power AMP Assign | |
| Foot Pedal EFX Jack | Yes |
| Noise | |
| Master Gain@Unity Ch, gains down | 87 dB |
| Master Gain@Unity,CH.gains@Unity | 85 dB |
| Signal to Noise Ratio | ≥90 dB |
| Crosstalk | |
| Adjacent inputs or input to output | 90 dB |
| Frequency Response | |
| 20Hz to 40kHz(Mic Pre Section) | +0, -1.5dB |
| 20Hz to 30kHz(Power Amp Section) | +0, -1dB |
| Maximum Levels | |
| Mic Preamp Input | +4 dBu |
| All Other inputs | +18 dBu |
| Impedances | |
| Mic Preamp Input | 4k Bal. |
| All Other input | ＞10k |
| Line Input | 4k |
| Equalization | 2 Band |
| Low EQ | 100 Hz +/-15dB |
| Mid EQ | N/A |
| Hi EQ | 10 kHz +/-15dB |
| Micriphone Preamp E.I.N. | -125dBm |
| Power Requirements | 200Watts |
| Dimension(WxHxD) | 415 x 197 x 235 |
| Shipping/CBM | 0.0504 |
| Net Weight | 10kg |
