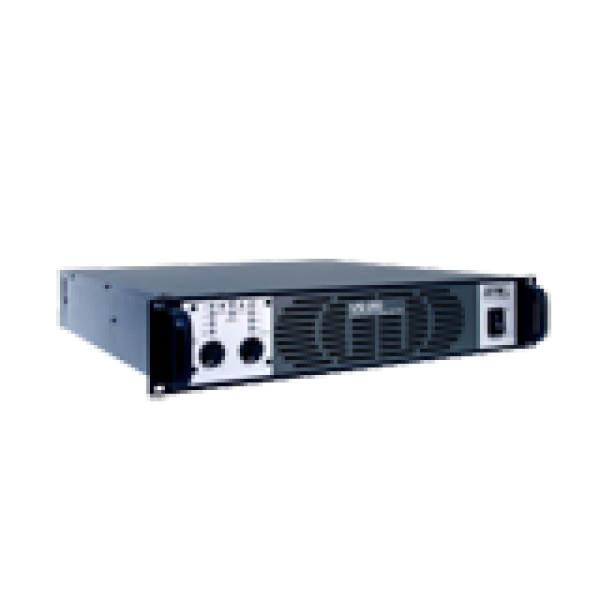

TĂNG ÂM CÔNG SUẤT 2X600W VS-20 STK

ÂM THANH BIỂU DIỄN STK

Mã sản phẩm: VS-20 STK

(0 đánh giá) (2 lượt xem)

Model	VS-20
Stereo Mode (both channel driven)	Continuous Average Output Per Channel
FTC @ THD+N=0.1%, f=20Hz~20kHz	Ch1	Ch2
8 ohm/Stereo	600W	600W
4 ohm/Stereo	1000W	1000W
EIA @ THD+N=1%, f=1kHz
8 ohm/Stereo	650W	650W
4 ohm/Stereo	1030W	1030W
Bridge Mono Mode (both channel driven)
FTC @ THD+N=0.1%, f=1kHz
8 ohm/Bridge	2000W
4 ohm/Bridge	2000W
Power Bandwidth (Ref. 1kHz, THD+N=0.1%,+0/-1dB)	20Hz~30kHz
THD+N (Ref. 1kHz,f=20Hz~20kHz)	≤0.05%
Frequency Response (Ref. 1kHz, 1watt output, +0/-1dB)	20Hz~40kHz
IMD(SMPTE4:1) (60Hz:7kHz, 4:1 Half power)
4-8 ohm/Stereo	≤0.1%
8 ohm/Bridge	≤0.1%
Crosstalk (RL=8Ω, Half power, Att.Max 600Ω shunt)	≥64dB, 1 kHz
Residual Noise (20Hz~22kHz LPF,Att.min)	≥70dB
S/N Ratio (Filter:A-Weighting, RMS)	≥104dB
Damping Factor (RL=8Ω, f=1kHz)	≥350
Input Sensitivity (Att. max)
4 ohm/Stereo	+4.0 dBu
8 ohm/Bridge	+5.1 dBu
Voltage Gain	36dB
Output Circuitry	H Class 2-Step
Input Impedance	6kΩ(Unbalance), 12kΩ(Balance)
Controls
Front panel	AC Switch,Ch1 and Ch2 gain control knobs
Rear panel	Stereo/Mono Bridge,Clip limiter(option), HPF Switch
Connectors
Input	XLR jack ,1/4" TRS jack XLR male Jack(In put Through Out
Output	Speakon Jack, 5-Way binding Post
Indicators	Power(Green),Protect(Red),Clip(Red), Mono Bridge(Green) Bar Graph In/Out level meters.
Protection Circuits	1)Short Circuits 2)Current Limit 3)DC detection 4)Thermal 5)Turn On/Off muting 6)Power supply shutdown 7)AC Line fuse
Fan Circuit
Power Consumption (1/3 power)	2000Watts
